AS-BM | Belt Module
24 and 48V Light Weight Belt Conveyors
What we offer
AS Belt Modules are designed to be plug and play and require little to no training for operators. We provide a hot swappable module with replaceable core components for easy maintenance. With AS Partners around the world you can expect local support.
Our Belt Modules
The most versatile transportation equipment for High Mix/ High Volume application. Applicable for fixed as well as portable solutions such as AGVs.
- Transportation
- High Speed Sorting
- Retro-fit
- Custom Designs

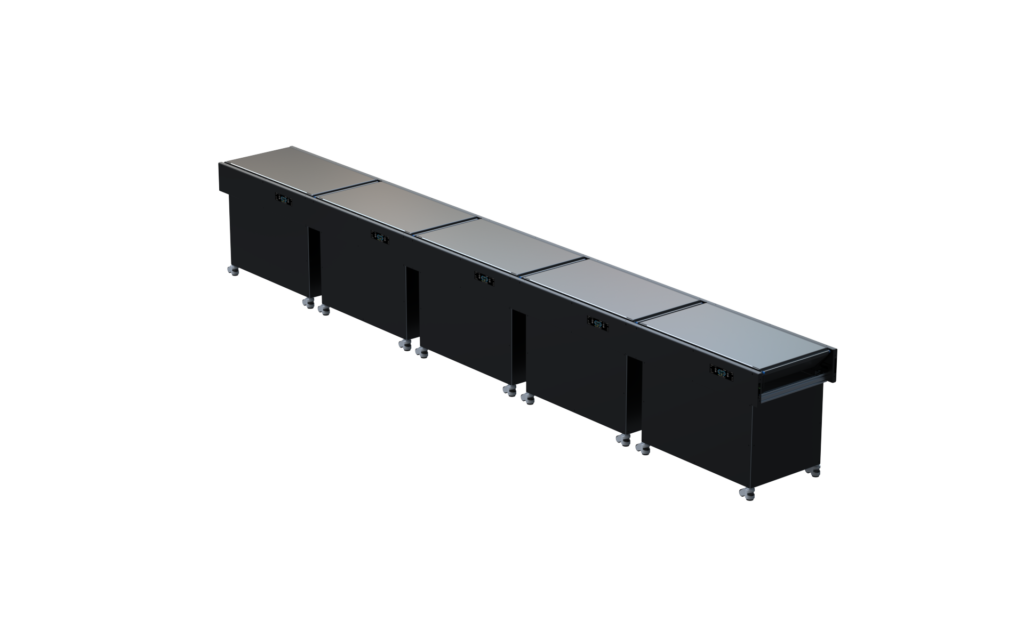

AS-BM400 Series
Belt Modules for all transportation applications can be delivered as a plug and play module or as Self Build Kits from us directly. Used for odd shaped or small packages.
AS-WD20 Series are Sorters with rows of 2 discs.
Throughput: up to 4.000 packs per hour
Max weight: 35 kg.
Input Power: 230 Vac (960 Watt Max)
Max Transport Speed: 2.5 m/s
Sorting Angles: -90 to +90 (increments of 5)
Controls: 24 Vdc I.O | TCP/IP | Profinet | Fieldbus
Sorter Modules: Included
Power Supply: Included
Controllers: Included
Frames and Covers: Included
Control Box and Cables: Included
Up on request: extra controller for more control
AS-BM600 Series
Wheel Disc Sorters offers high speed sorting capabillities for loads up to 35 kg. The design is modular and can be easily implemented in new and exiting systems.
AS-WD20 Series are Sorters with rows of 3 discs.
Throughput: up to 4.000 packs per hour
Max weight: 35 kg.
Input Power: 230 Vac (960 Watt Max)
Max Transport Speed: 2.5 m/s
Sorting Angles: -90 to +90 (increments of 5)
Controls: 24 Vdc I.O | TCP/IP | Profinet | Fieldbus
Sorter Modules: Included
Power Supply: Included
Controllers: Included
Frames and Covers: Included
Control Box and Cables: Included
Up on request: extra controller for more control
